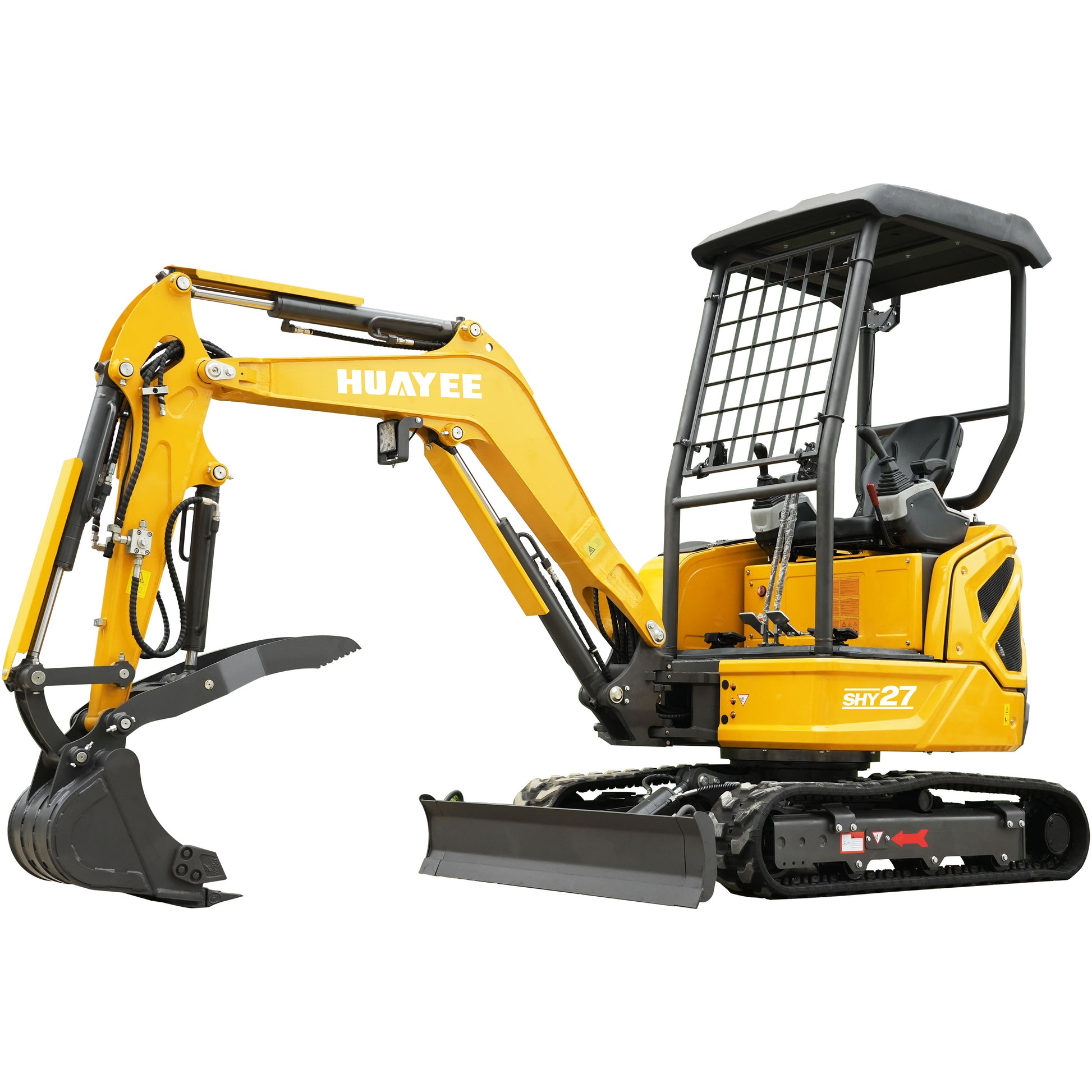

HUAYEE SHY27 Mini Excavator

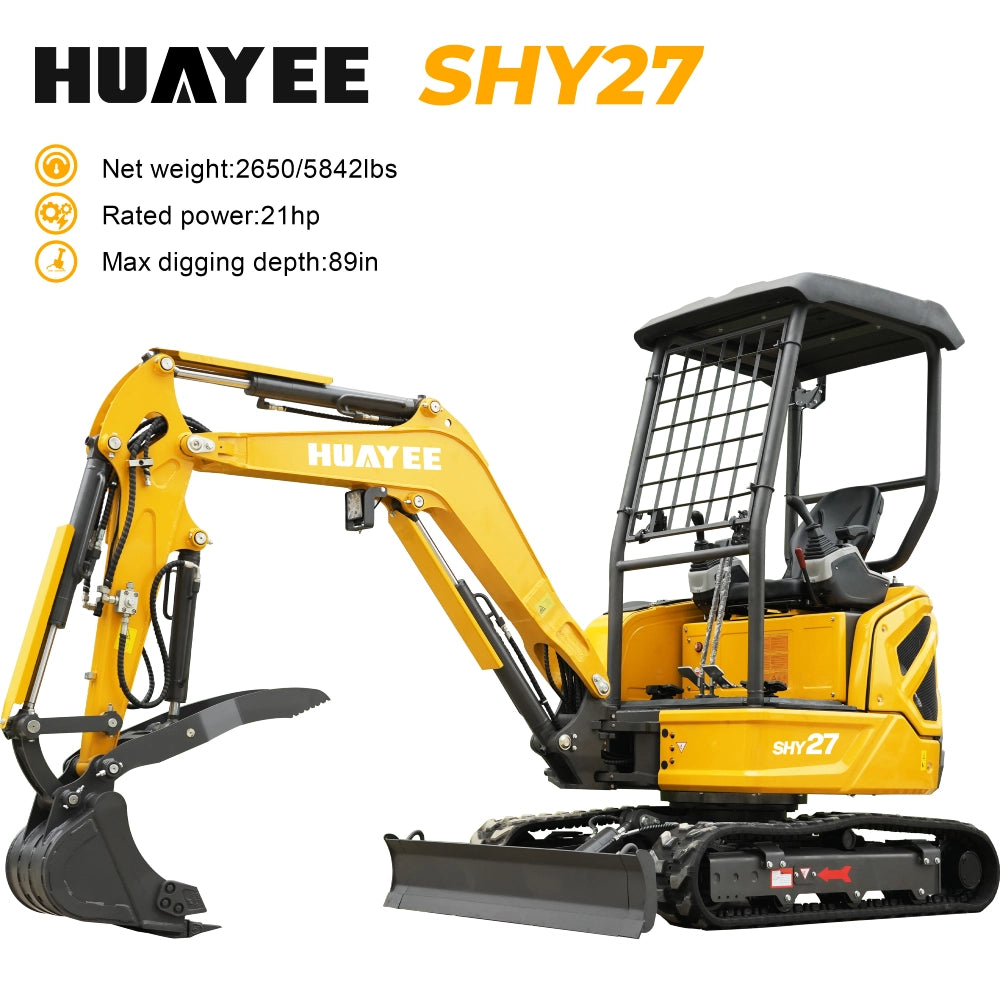

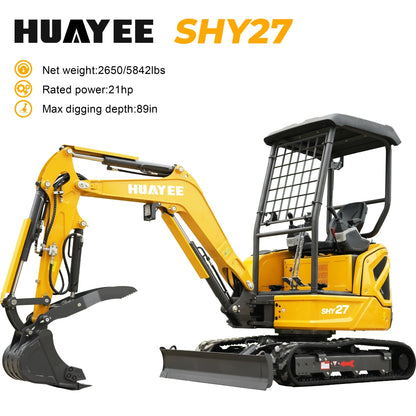

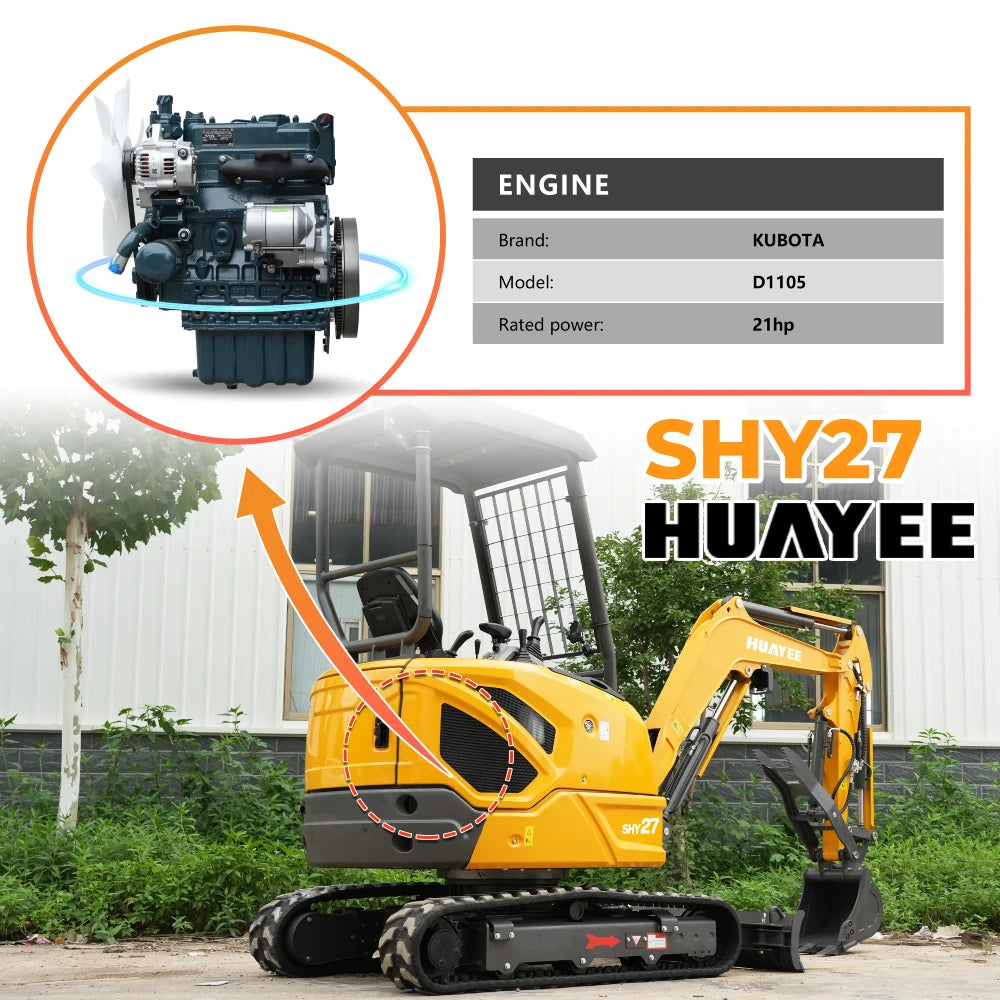

The HUAYEE SHY27 is the flagship model in the HUAYEE SHY series, a 2.7-ton class commercial-grade mini excavator built for demanding job sites requiring both power and compact agility. Powered by the proven Kubota D1105 diesel engine with 21 HP rated power, delivering robust and fuel-efficient performance. 0.08 m³ large capacity bucket with 28 kN maximum digging force for significantly improved digging efficiency.
Outstanding working range: max digging depth 2,260 mm, max digging radius 4,230 mm, max digging height 3,950 mm, max dump height 2,800 mm. Piston pump hydraulic system provides strong flow, equipped with hydraulic oil cooler (with fan) for stable long-term continuous operation. True pilot control system delivers precise and comfortable operation.

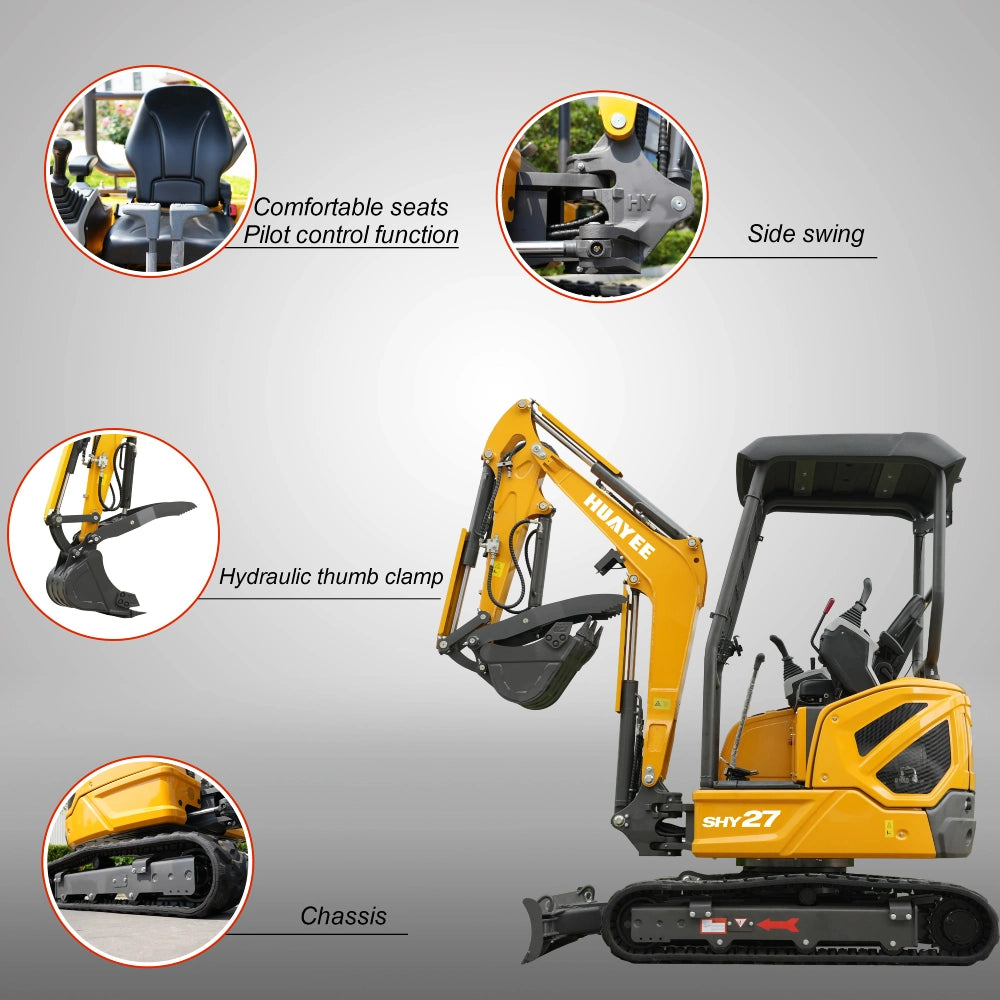

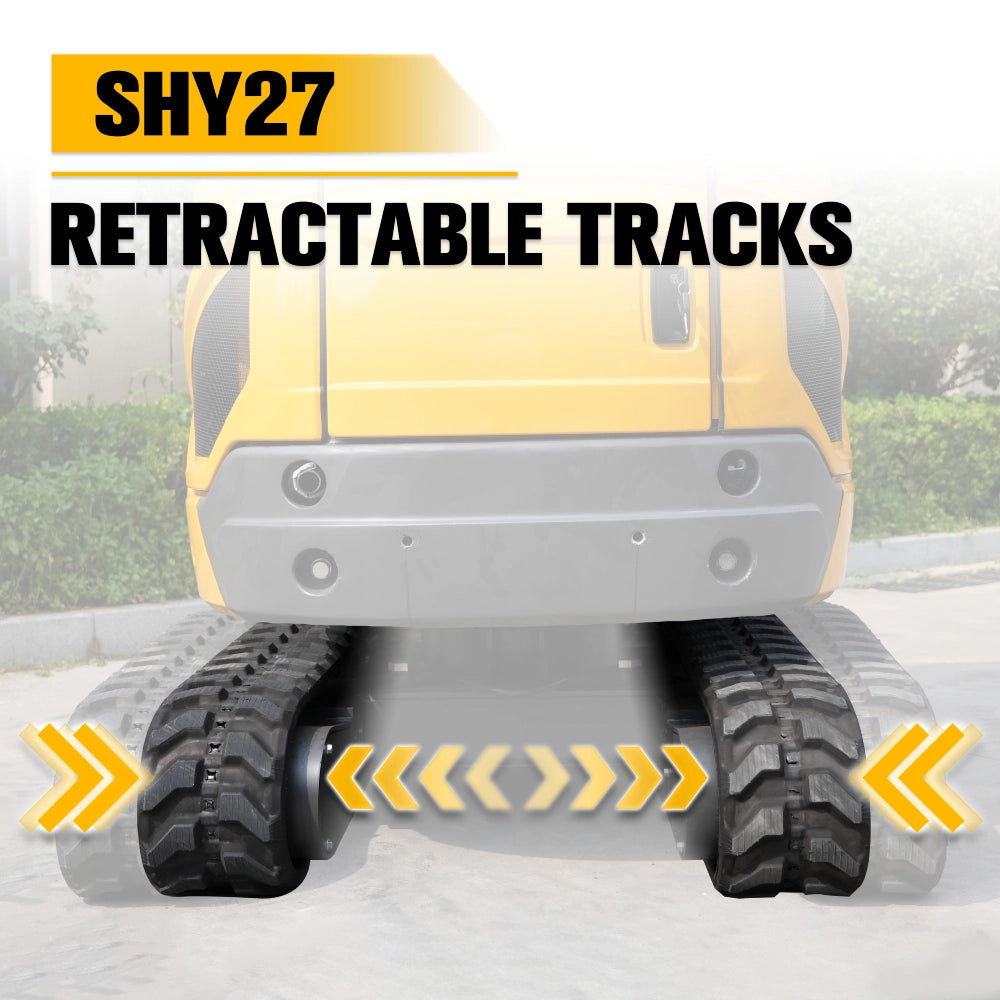

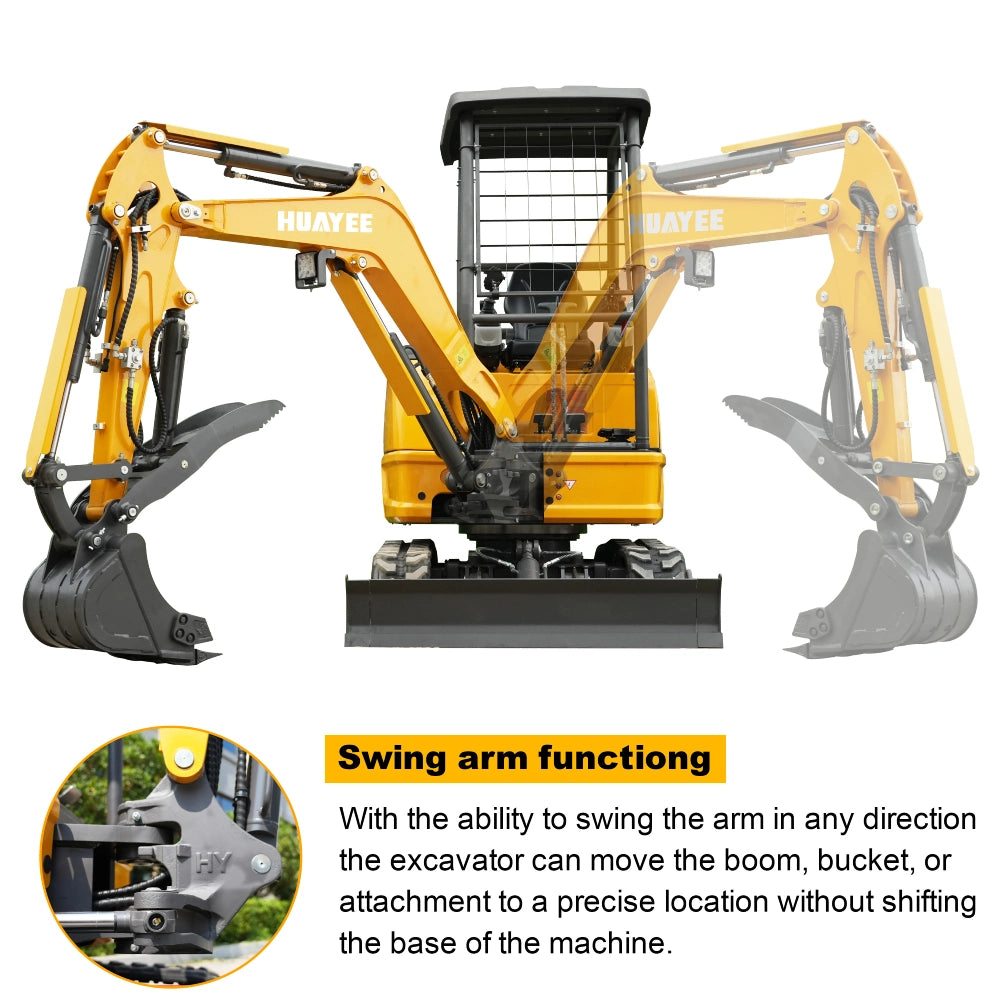

Expandable track design (track gauge 1050/1250mm, width 250mm) adapts to different terrain. Hidden drive motors with two-speed mode (fast/slow), max travel speed 4.2 km/h. Equipped with hydraulic thumb, swing boom, muffler heat shield, case drain lines and other professional configurations.

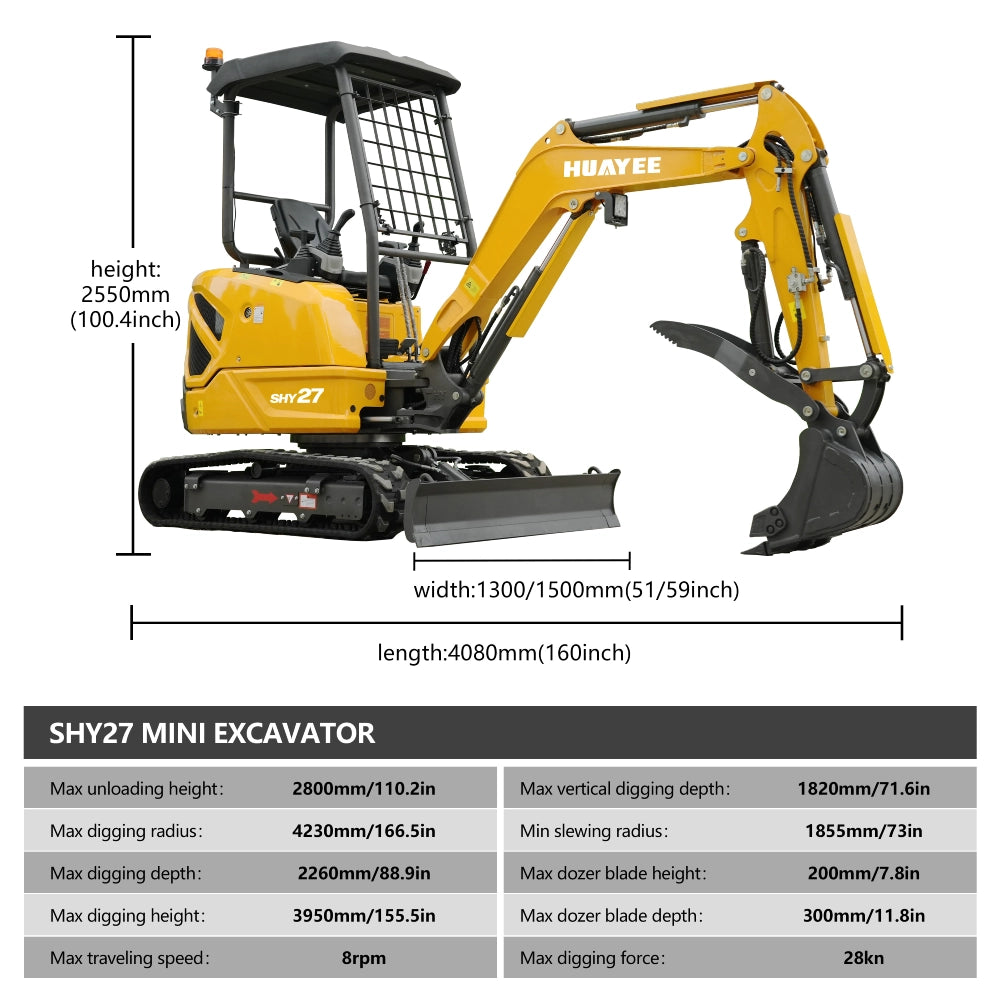

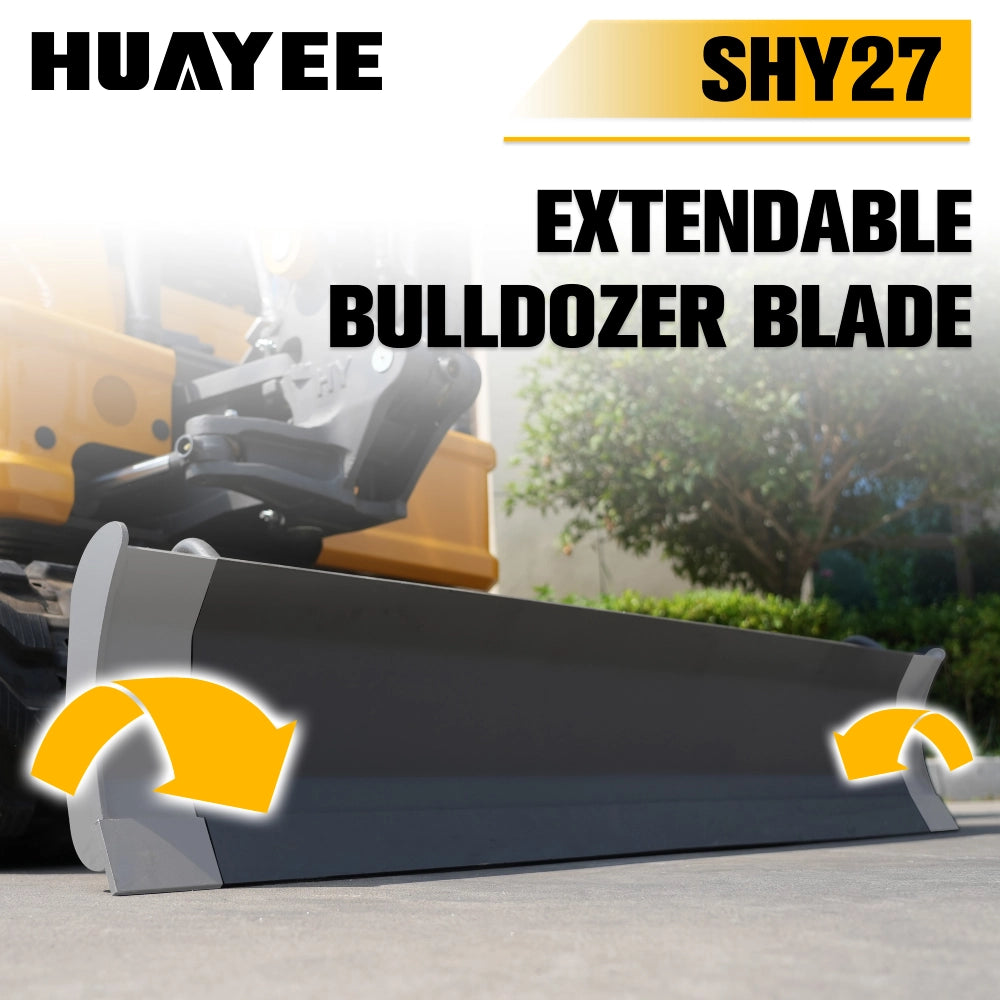

Compact overall dimensions (4080×1300-1500×2550mm) with minimum tail swing radius of only 905mm, excelling in confined space operations. Dozer blade max lift 200mm, dig depth 300mm. Supports hammer, auger, grapple and other attachments for multi-function capability. 1-year parts warranty, 3-year powertrain warranty provides reliable protection for your investment. Suitable for large-scale landscaping, municipal construction, pipe laying, small earthwork and various applications.
