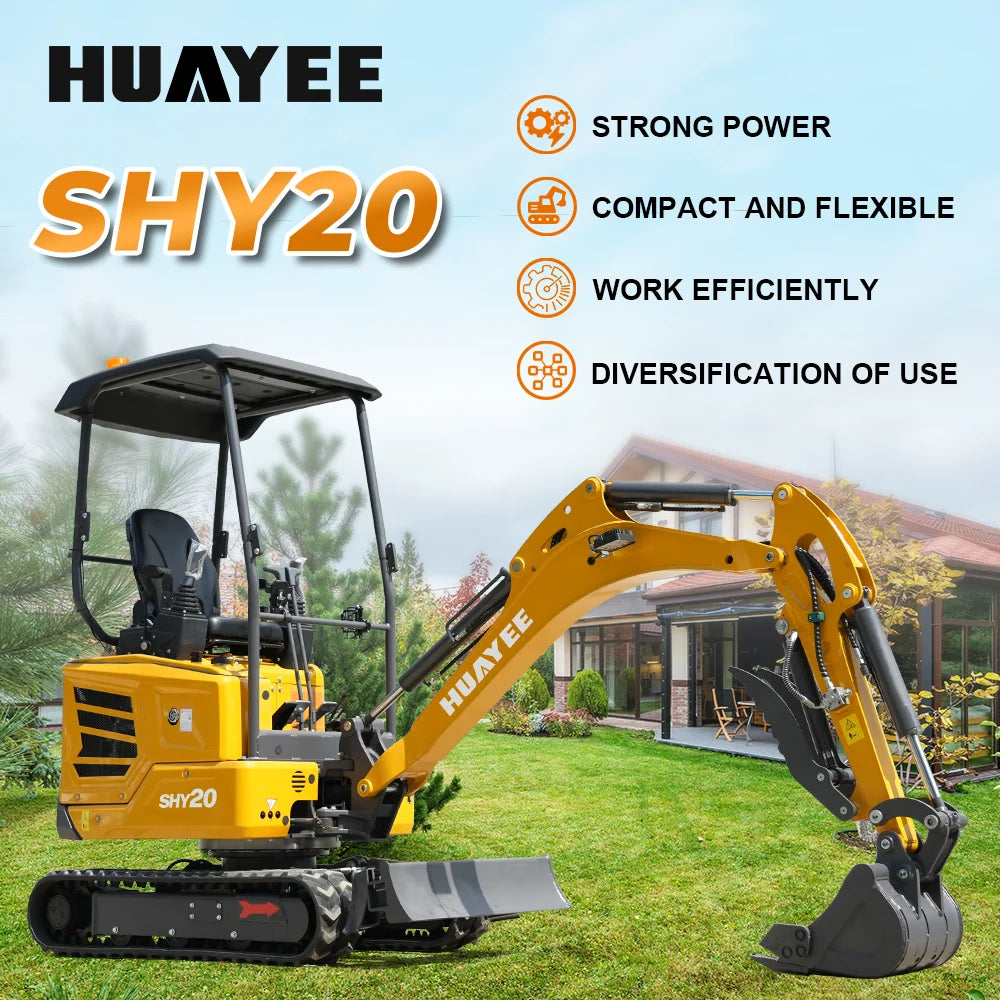

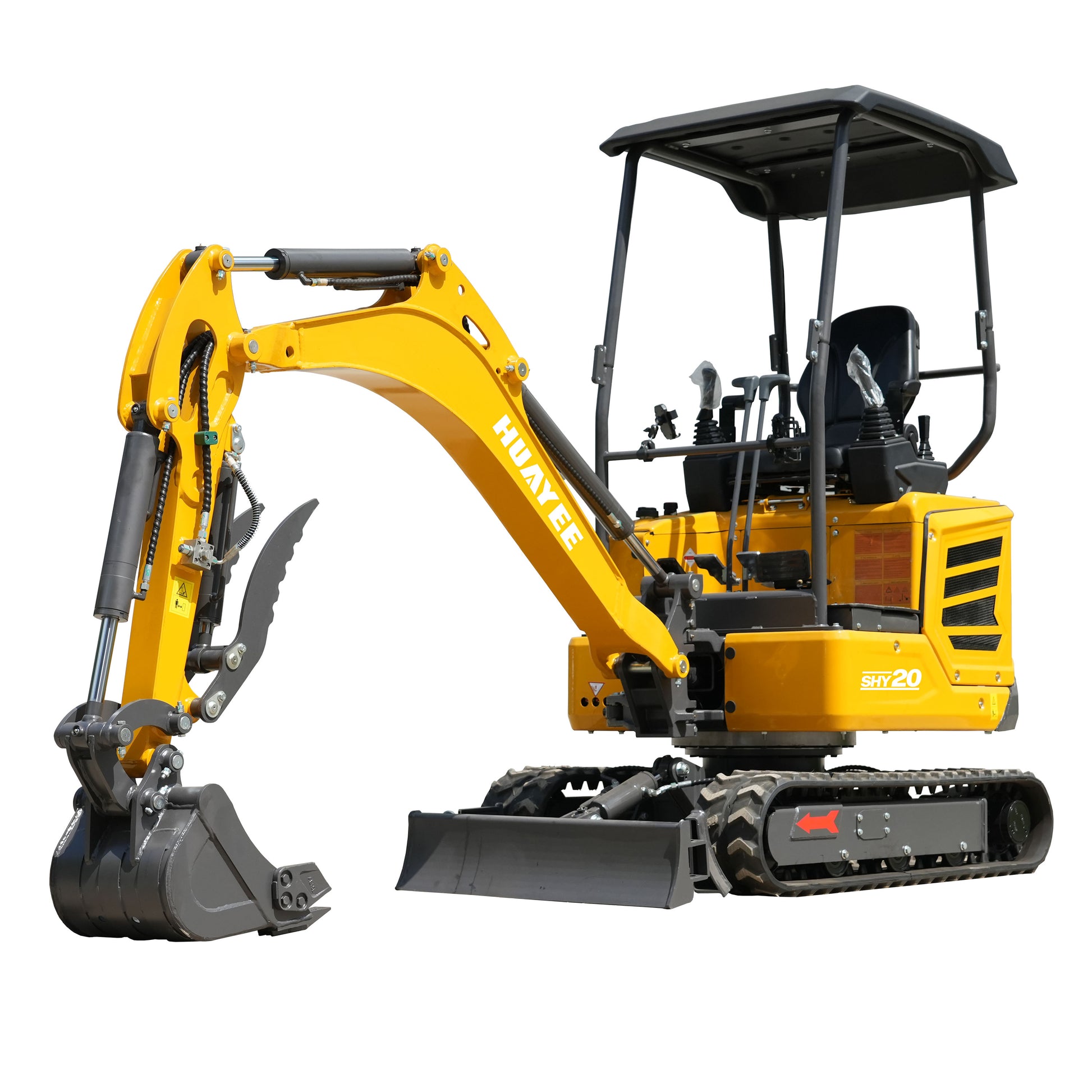

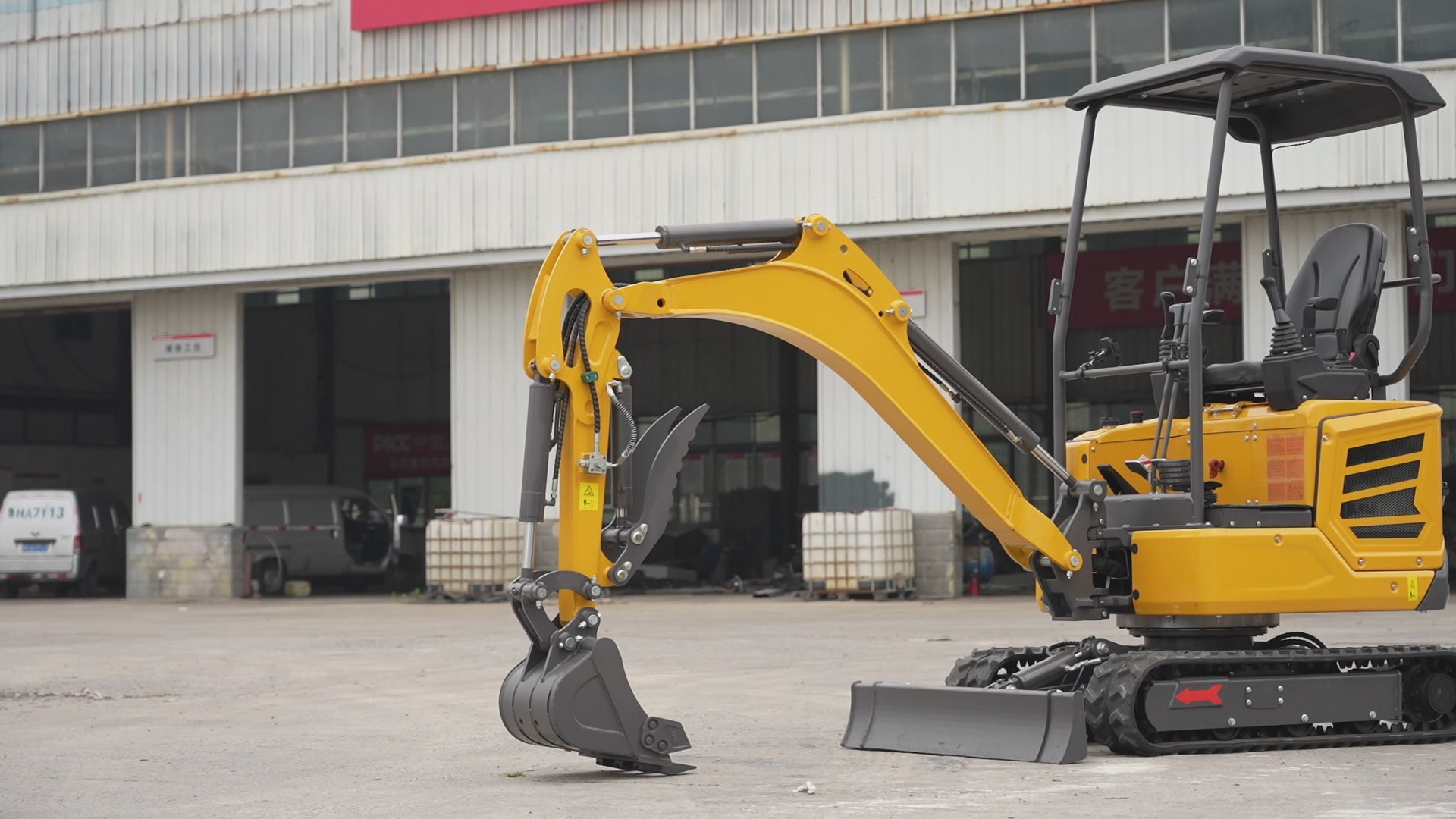

HUAYEE SHY20 Mini Excavator

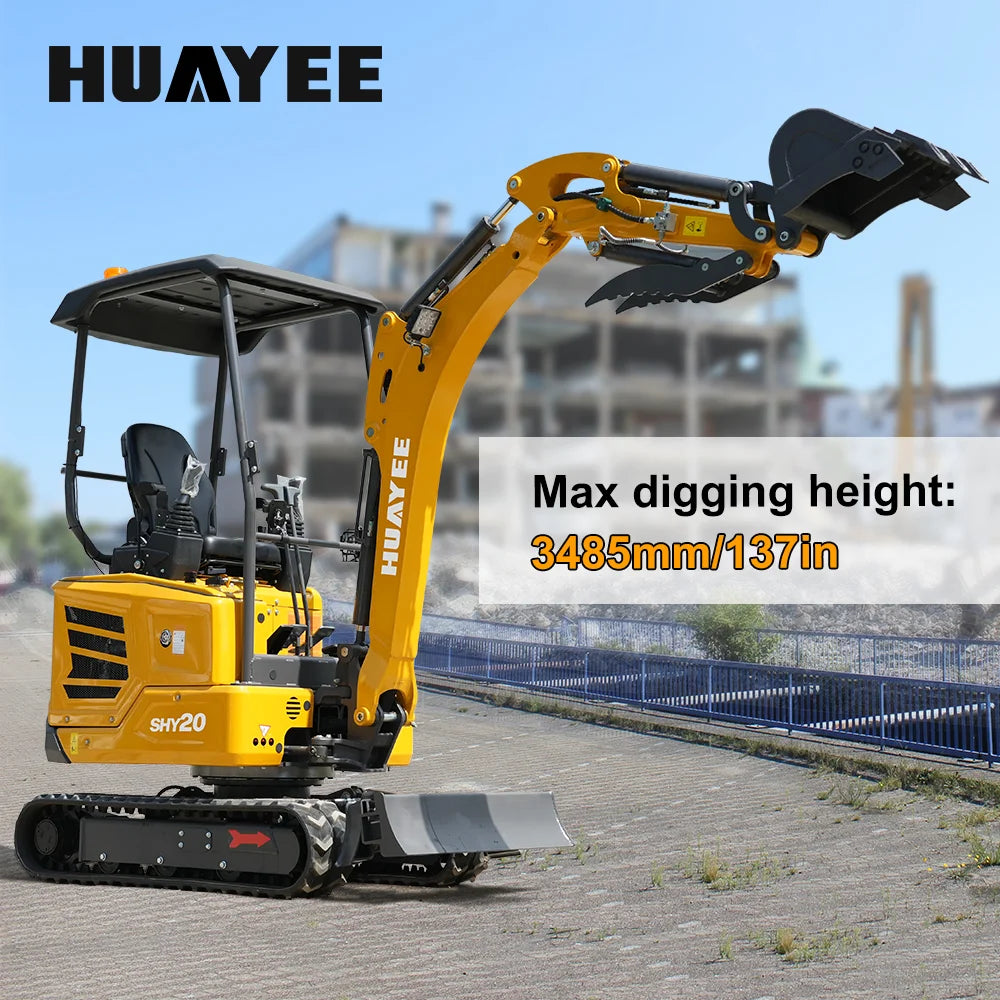

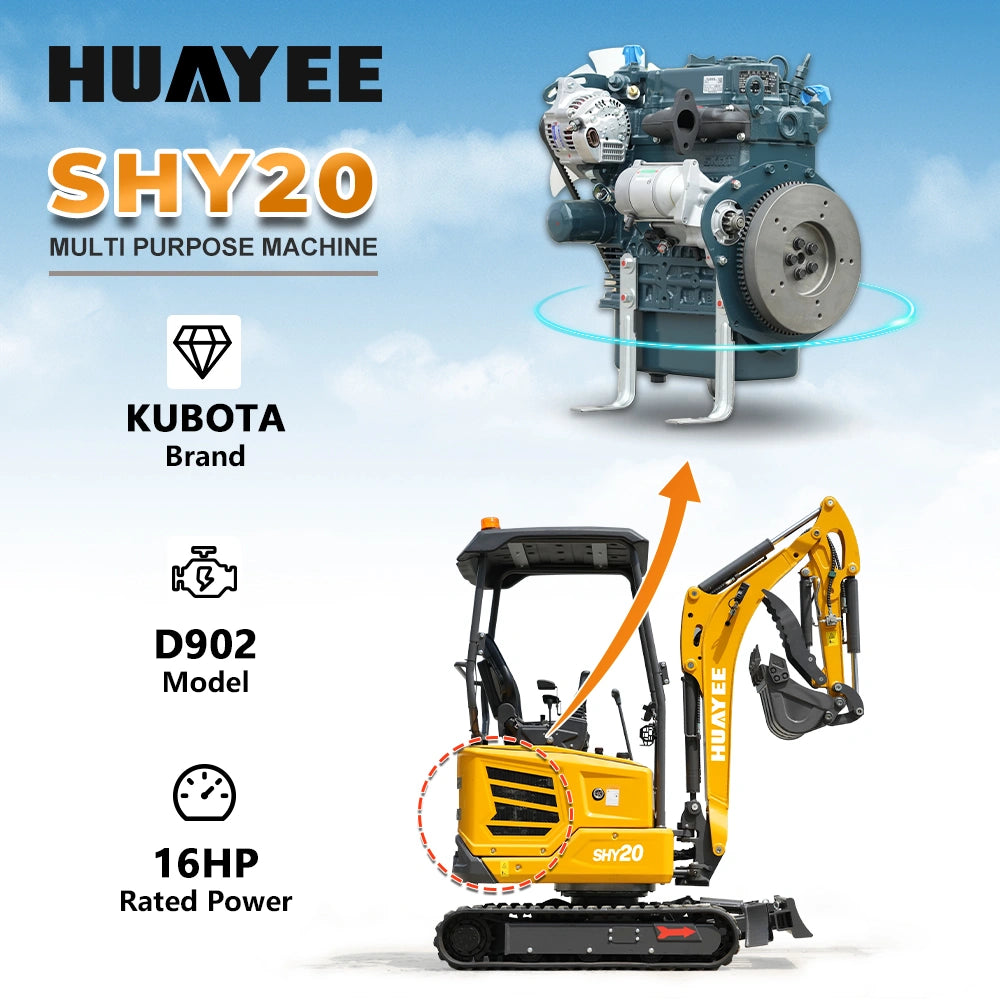

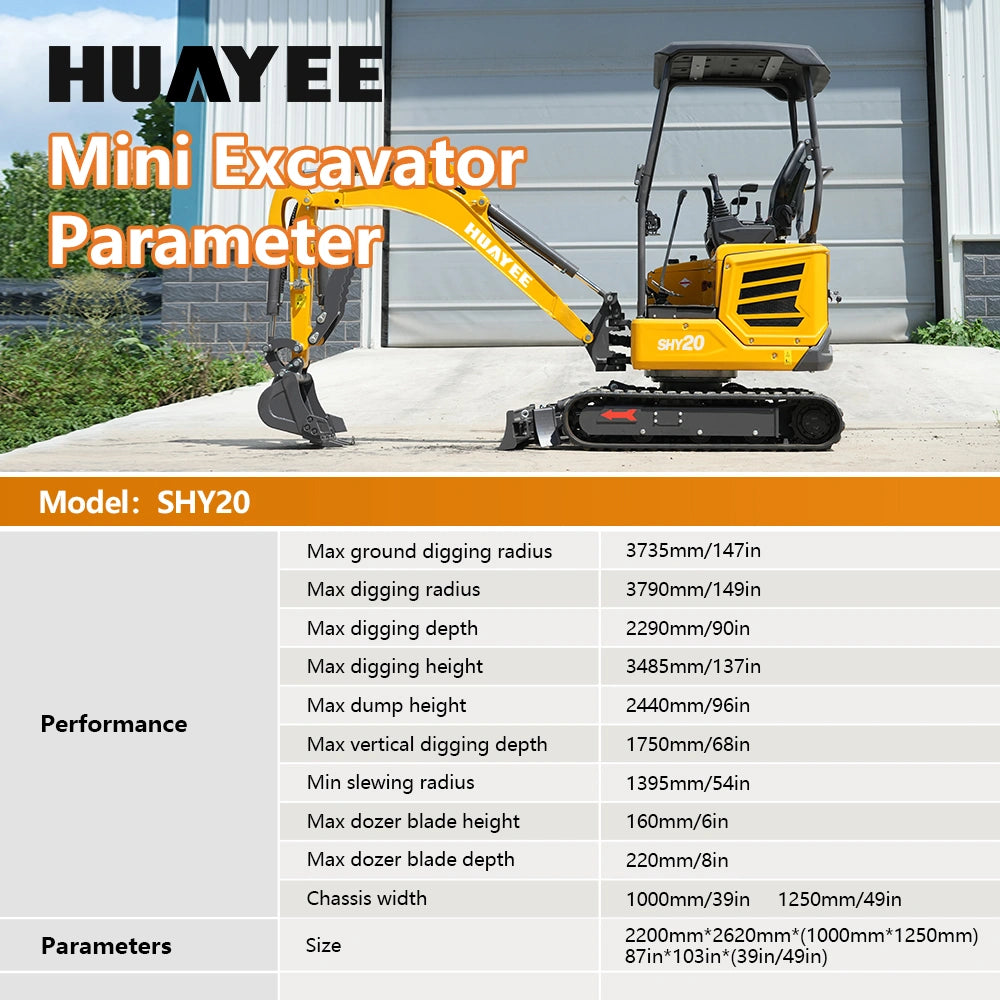

The HUAYEE SHY20 mini excavator is the 2025 new model medium-duty compact excavator, designed for medium-intensity work where strength and precision both matter. Powered by Kubota D902 diesel engine with 898cc displacement delivering 16 HP powerful output, working pressure reaches 20.5 MPa. Operating weight 1,680 kg, 0.03 m³ bucket capacity, excellent digging performance: max digging depth 2,290 mm, max digging radius 3,790 mm, max digging height 3,485 mm.

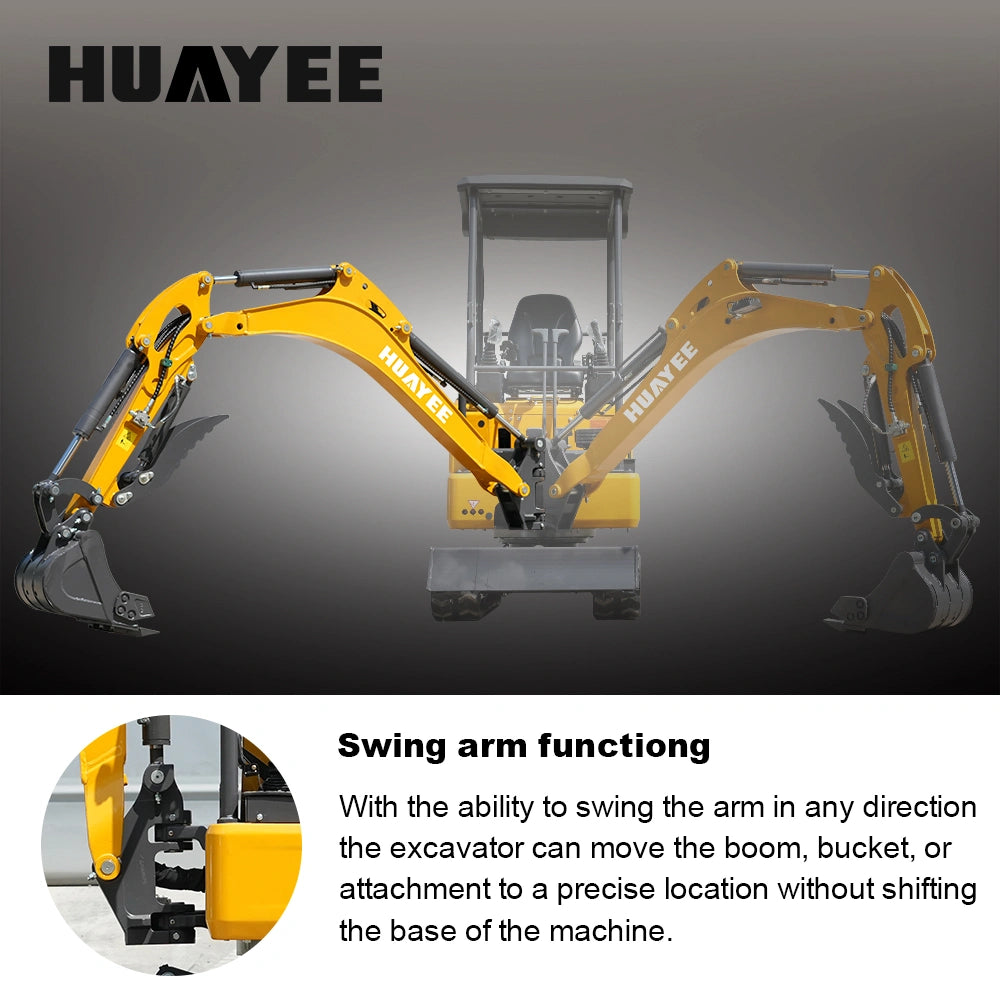

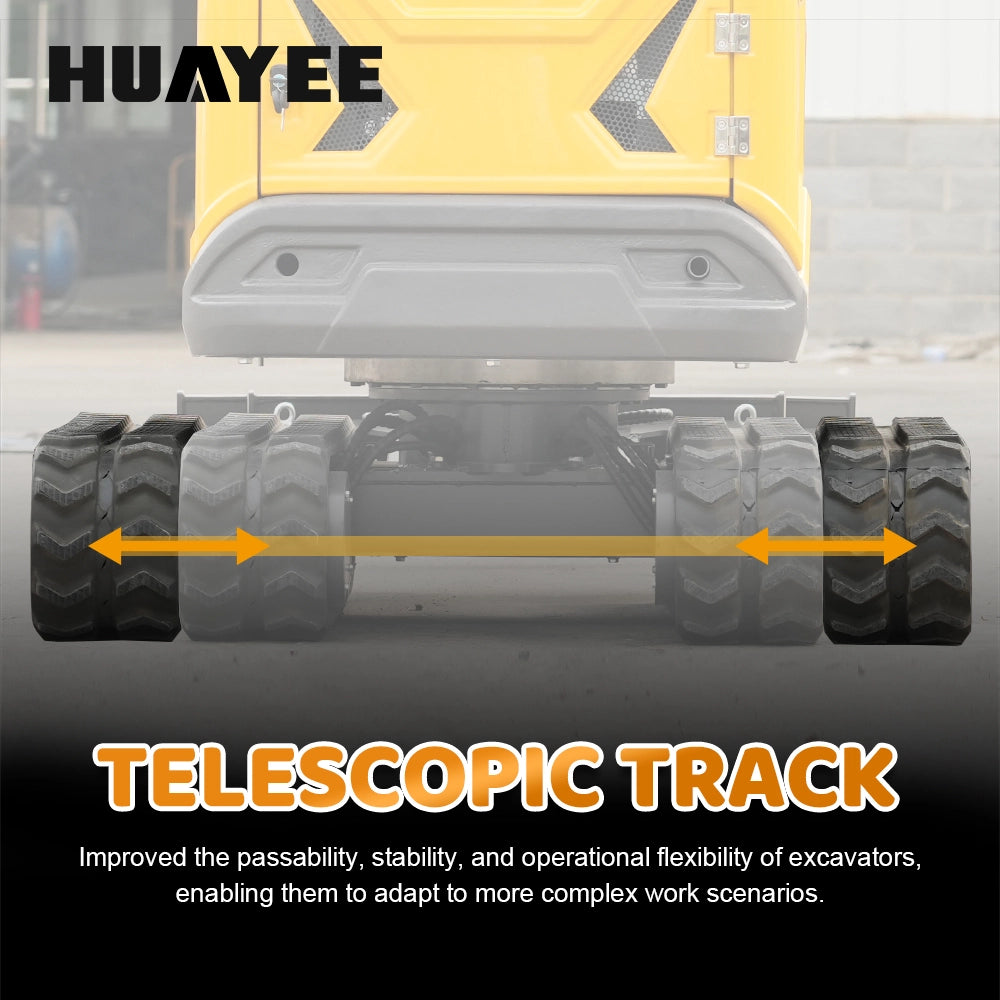

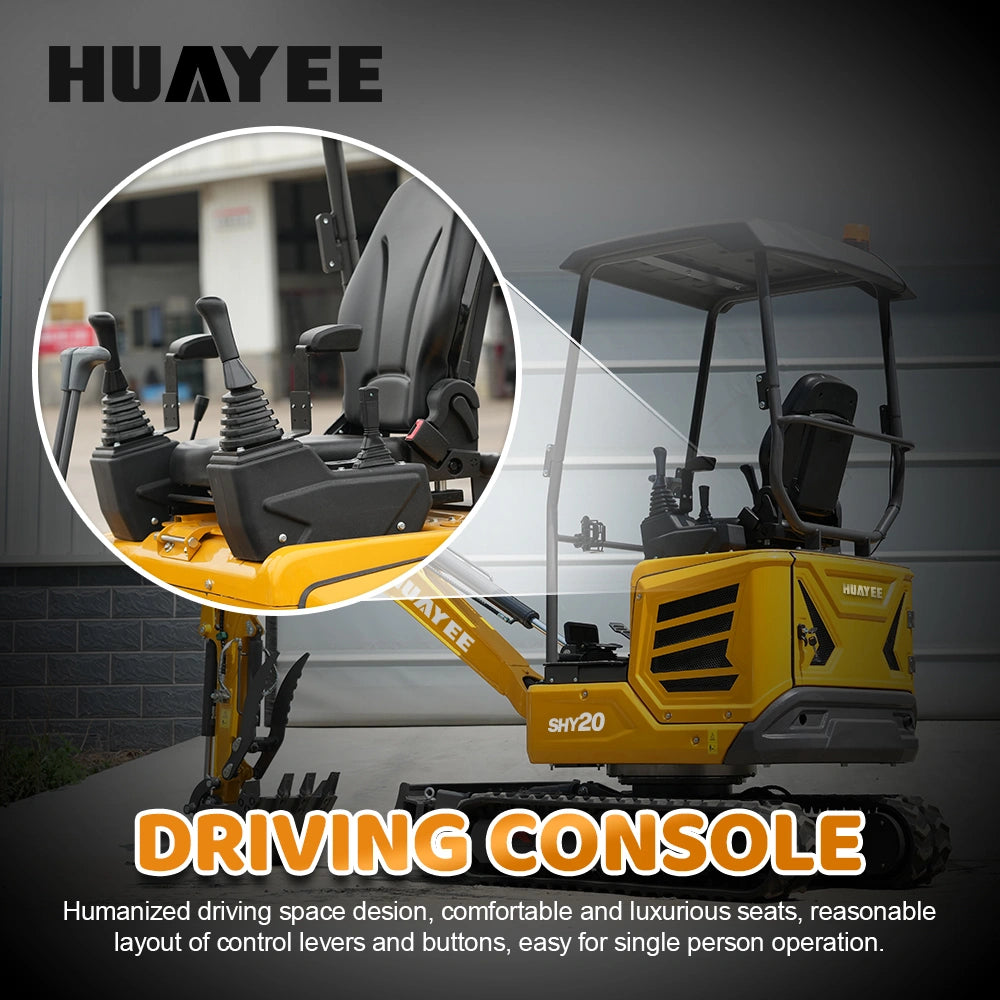

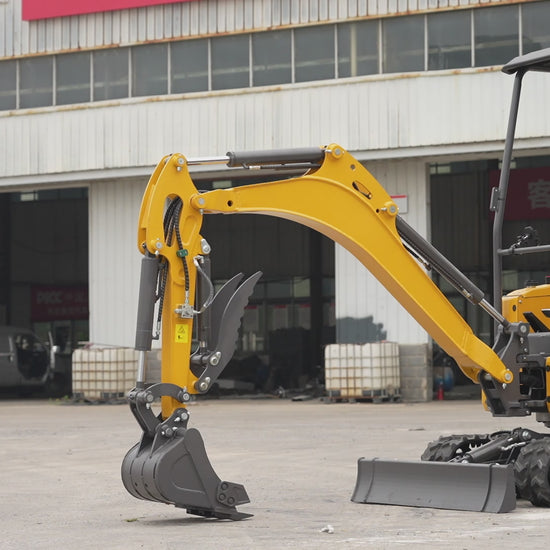

Equipped with pilot control system for precise and responsive operation. Piston pump hydraulic system provides 60 L/min high flow with 20 L hydraulic tank for continuous stable operation. The swing boom design enhances flexibility in confined spaces. Compact dimensions (2472×1100×2237mm), 1,000mm chassis width, rubber tracks, 4 km/h max travel speed, 30° gradeability.

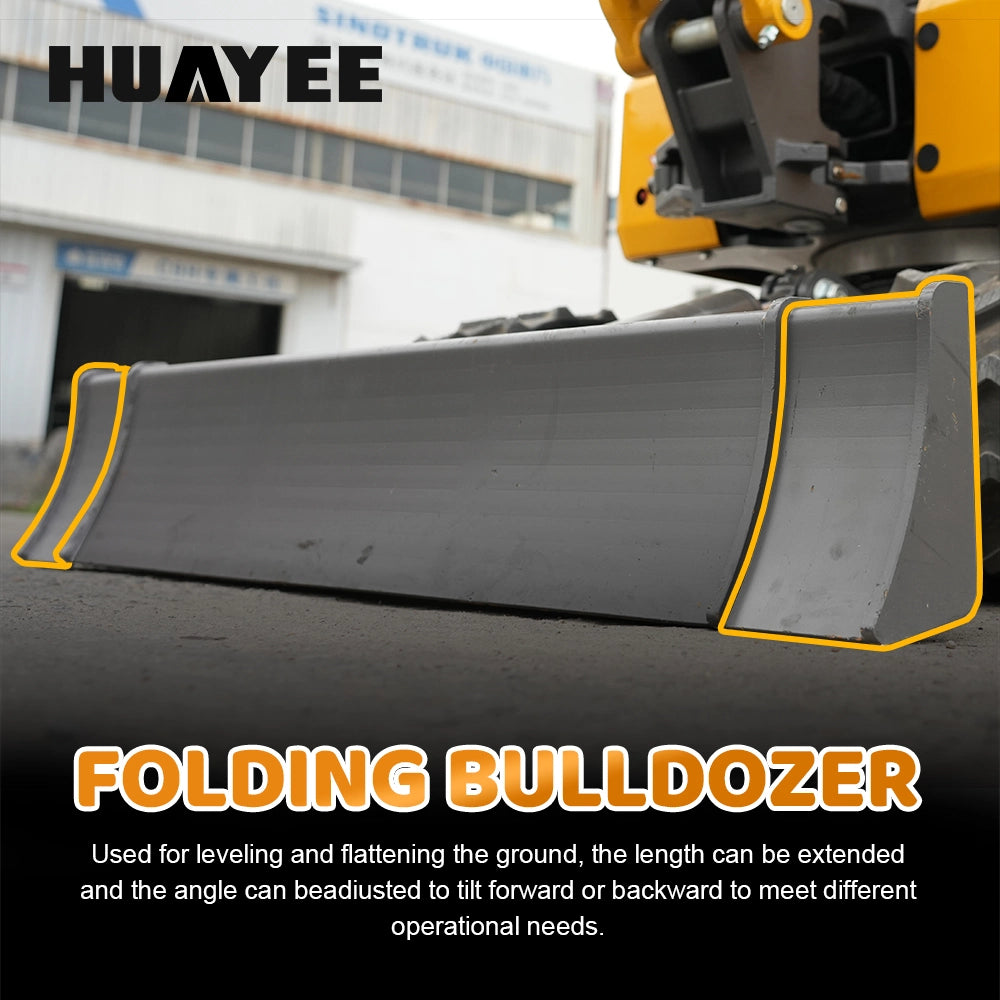

Standard dozer blade (max lift 160mm, dig depth 220mm), supports hydraulic thumb, hammer, grapple and other attachments. Suitable for civil engineering, landscaping, municipal maintenance, small construction and more. Commercial-grade durability makes it the ideal choice for professional contractors.
